Part Number: CAT6A-SH-JACK-WT

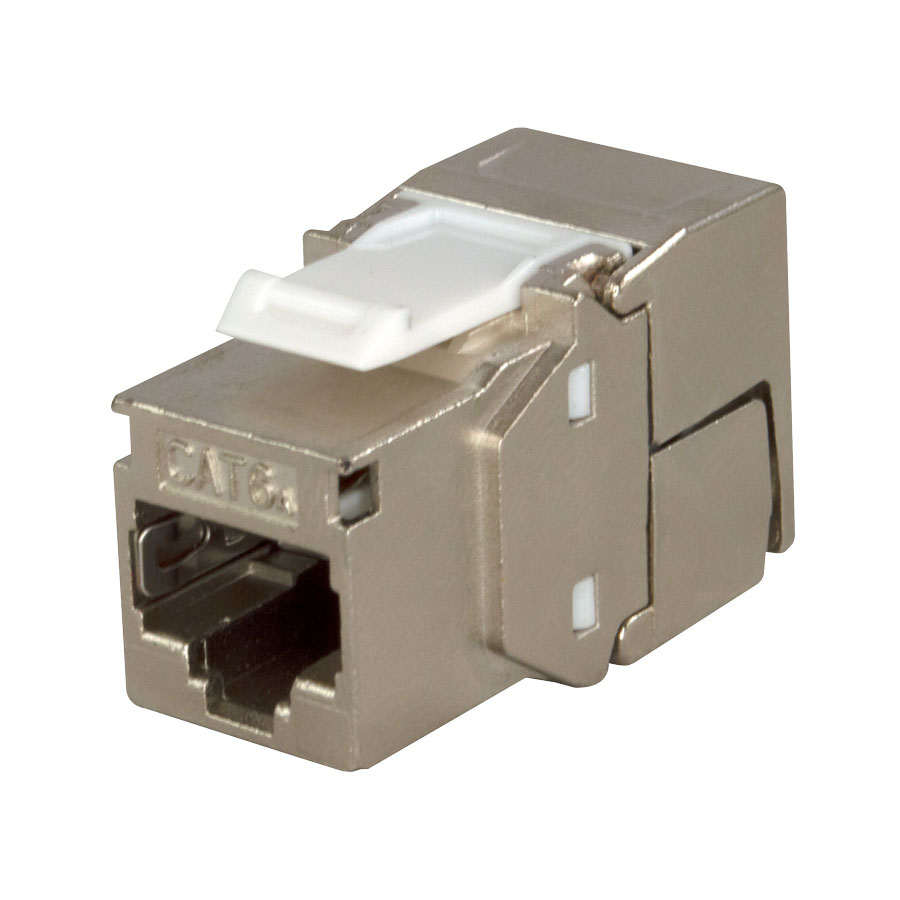

CAT6A SHIELDED10GBASET RJ45 KEYSTONE JACK- 8P8C- FULL SHIELD- WHITE CLIP- 1 EA/BAG

Product Details

CAT6A-SH-JACK-WT

CAT6A SHIELDED 10G BASET RJ45 KEYSTONE JACK- 8P8C- FULL SHIELD- WHITE CLIP- 1 EA/BAG

Features
The brand new tool-less screened modular keystone jack features a die-cast housing. Innovative mechanism optimizes the PSANEXT & PSAACR-F – which are the most critical criteria outlined by Class EA standard.

Patented PCB route & unique contact alignment provides excellent works in easing the internal magnetic coupling up to bandwidth 500MHz.

Supports interoperable 10G BASE-T application, backward compatible to any Class E, Class D solution. Press-Fit tech. is applied, no solder, no Pb, purely RoHS compliant.

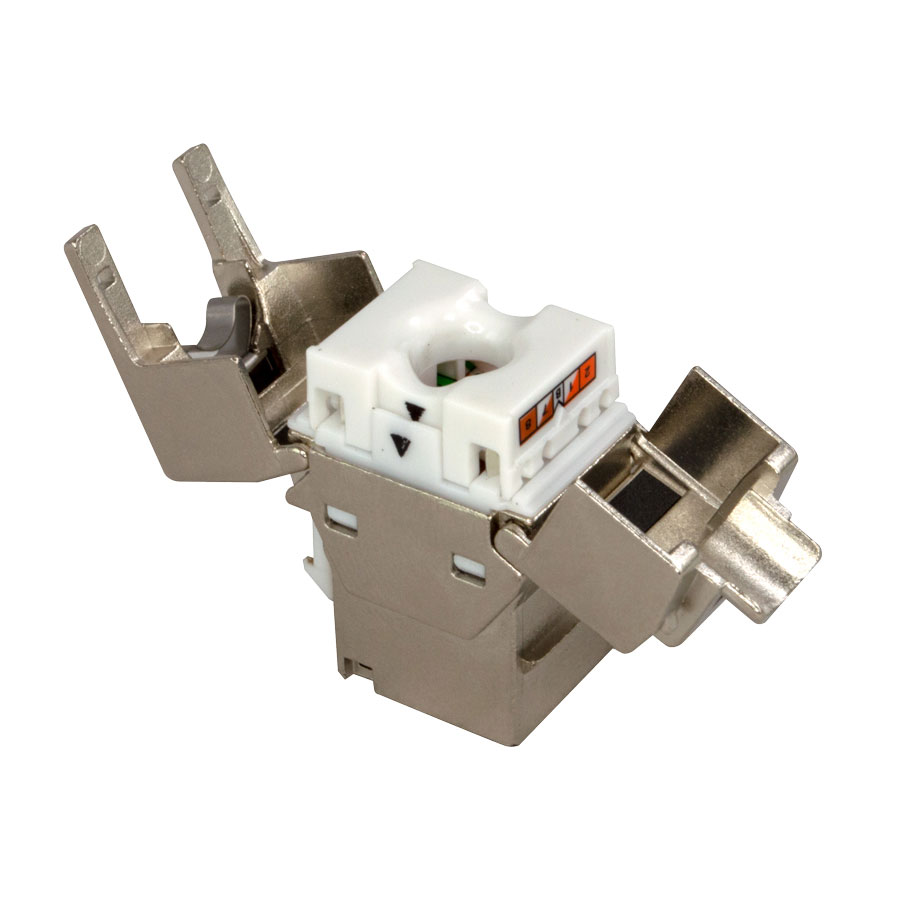

This tool-less keystone jack requires no punchdown tool to install. Easy installation instructions to follow simplify your work and increase your efficiency.

Application

  • Cat.6A Channel Performance
  • Die-Cast Housing, effective protection from EMI and Alien crosstalk
  • Press-Fit Module, Without Solder, RoHS Compliant
  • Features Tool-less design, requiring no impact tool

Physical Specification

  • Die – Cast housing: Zine alloys Zamac3
  • Spring wire: Phosphor Bronze temper wire, 0.45mm, 50u Gold over 100u Nickel undercoat
  • IDC housing: Polycarbonate resin high-impact UL94V-0 thermoplastic
  • IDC contact: Phosphor Bronze, t=0.4mm, 200u Tin over 50u Nickel undercoat
  • Mating: 750 mating cycles with FCC compliant RJ-45 plug
  • Wire accommodation: accommodates 22-24 solid cable with insulated conductor size smaller than 1.47mm
  • Operating temperature: -10°C-60°C
  • Operating humidity: 10%~90%RH
  • Storage temperature: -40°C to 68°C
  • Certificate:ETL – Cat.6A STP 4-point channel (with coupler as feed-thru panel+QBSS) Certificate

Standard

  • TIA/EIA-568-B.2-10
  • FCC part 68, Subpart F
  • Amendment 1 to ISO/IEC 11801, 2nd Ed.
  • UL 1863

Certificate

  • ETL-C6A STP Connector Channel Certificate
