C63GHZFSCAPC

4 Port Keystone Wall Mount Premise Wall Box, White with Fiber SM (SC/APC) Green Coupler + Cat6 Keystone Jack (white) + F-Conn F81 (3Ghz) Keystone Jack + Blank Port Snap-In Insert -1 ea/Box

PRODUCT SUMMARY

4 PORT Single Gang Outlet with removable cover allows flexible terminations when combining multiple service drops into one location. Surface mountable allows for a minimal compact space to terminate Fiber, Data, Voice & Video into one easy accessible wall outlet. Compatible with all standard wall plates. Can be used in New construction or Retrofit wiring applications. Mounts to Standard Outlet Box or Low Voltage Box. Surface mounting screws included. A key advantage for Fiber to Desk, repair splicing, and access test point.

PRODUCT DIMENSIONS

SIZE: 5″L x 3.5″W x 1.1″H
Low-profile appearance. Includes Screw Cover Cap

FEATURES & BENEFITS

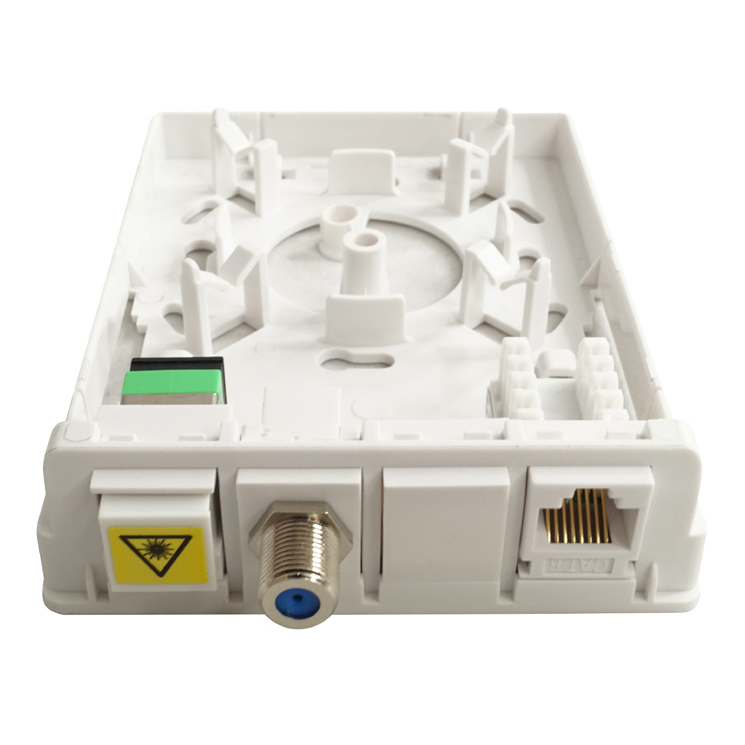

4 PORT configuration includes:

• Port 1 SC/APC Fiber
• Port 2 3 GHz F-Conn
• Port 3 Blank (Customization for Keystone additional jack)
• Port 4 CAT6 Jack 550MHz 90 Degree 110 Punch down w/ Dust cap

• Universal design fits any keystone jack: CAT5E, CAT6, Voice, F-conn, Fiber, etc
• Stores up to 3 Fiber
• Fits standard outlet box and 1 gang Low Voltage Bracket
• Constructed of flame-retardant ABS Polymer for reliable durability
• UL Listed

CONFIGURATION

1 x CAT6 JACK + 1 x F-Conn 3GHz female/Female + 1 x SC/APC + 1 x BLANK
Keystone Inserts are removable
Accepts standard keystone jacks
Inserts can be swapped to any port position
