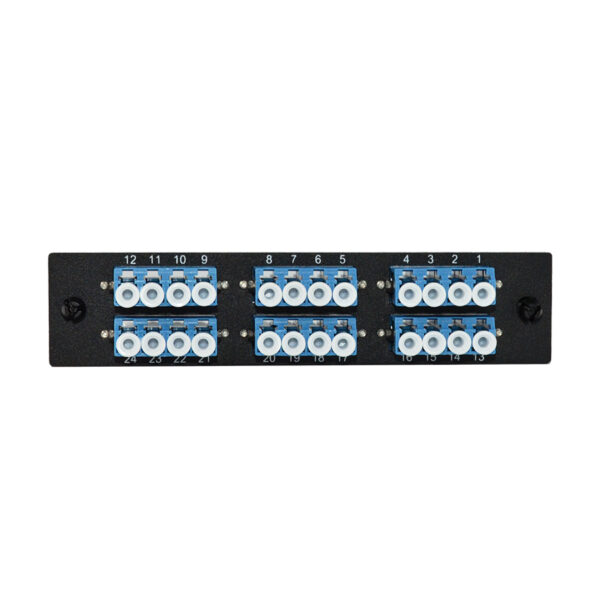

12 DUPLEX LC SINGLE-MODE FIBER LGX ADAPTER PLATE – OS2 9/125 ADAPTERS (BLUE), ZIRCONIA CERAMIC SPLIT SLEEVE, PUSH PIN STYLE MOUNTING TABS – 1 EACH

PRODUCT SUMMARY

The 12 single mode duplex LC enclosure panel populates open panel slots in compatible wall-mount enclosures and rack trays. The panel is compatible with LGX-118 panel slots and features push-pin style mounting tabs for quick installation.

FEATURES & BENEFITS

• Fiber coupler/adapter insert for rack trays and wall-mount enclosures
• 12 single mode duplex LC connectors
• Compatible with single mode OS1 and OS2 fiber
• Black powder-coated steel
• 5.10″ x 1.15″ (130mm x 29mm)
• LGX-118 compatible
• Push-pin style mounting tabs

SPECIFICATIONS

Dimensions: 5.10″ x 1.15″ (130mm x 29mm)

Material: Powder-coated steel

Color: Black

Compatible Panel Slot Size: LGX-118

Fiber Couplers:

Front: six female duplex LC connectors (24 total connectors)

Rear: six female duplex LC connectors (24 total connectors)

Compatible Fiber: Single mode OS1, OS2

Compliancy: RoHS
