Part Number: S45-C100

S45-C100 – Simply45® RJ45 Crimp Tool – Pass Through Unshielded & Internal Ground ShieldedSimply45® Pass Through RJ45 Crimp Tool for UTP & Internal Ground Shielded Pass Through RJ45 Mod Plugs, Built-In Stripper/Cutter – 1Ea/Blister. Previous Part No: SIMPLY45-CRIMPER

Product Details

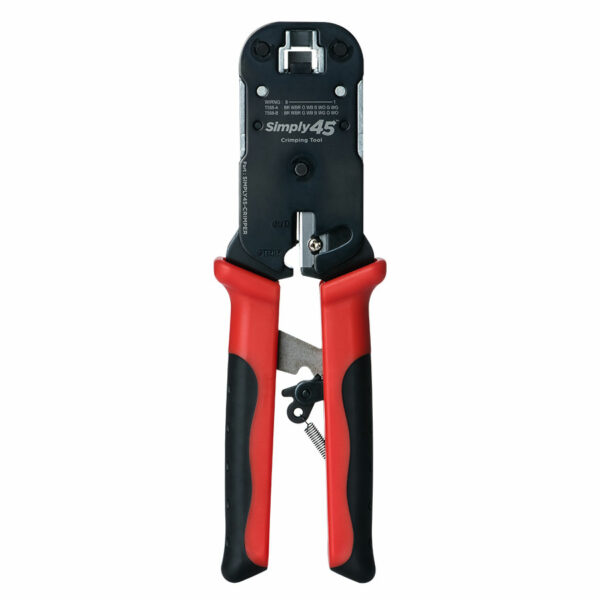

S45-C100 – Simply45® RJ45 Crimp Tool – Pass Through Unshielded & Internal Ground Shielded

Simply45® Pass Through RJ45 Crimp Tool for UTP & Internal Ground Shielded Pass Through RJ45 Mod Plugs, Built-In Stripper/Cutter 1Ea/Blister. Previous Part No: SIMPLY45-CRIMPER

SKU: S45-C100
EAN/UPC: 817777016857
Dimensions (in/mm): 11.6 x 4.5 x 1.2 in / 295 x 115 x 30 mm
Weights (lb/kg): 1.076 lb / 0.488 kg


Simply45® is the industry-leading brand for RJ45 modular plug innovation and performance solutions. Our S45-C100 Pass Through RJ45 Crimp Tool for unshielded and internal ground shielded Pass Through RJ45 modular plugs is a breakthrough in professional pass through RJ45 termination.

Note: Shielded with External Ground RJ45 modular plugs require a different crimp tool. For our Universal Standard WE/SS 8P8C for Shielded with External Ground RJ45 Crimp Tool please see S45-C250.

Simply45® Pass Through RJ45 Crimp Tool S45-C100 Features:

Ratcheted for Full Compression Cycle. A ratcheted crimp tool requires the installer to complete the full crimping cycle. While some RJ45 brands are eliminating this feature with their crimp tools, Simply45® knows that a ratcheted crimp tool is critical to ensuring that the RJ45 pins are properly seated onto the wire conductors and the pass through wires are properly trimmed. A ratcheted crimp tool prevents incomplete plug termination.

Synchronized Handles = More Force with Less Hand Effort. The Simply45® Pass Through RJ45 Crimp Tool S45-C100 uses synchronized handles that compress together during the crimping cycle. This synchronization delivers consistent and even force directly to the plug socket and the wire trimming. The result is a smoother, faster and easier crimping process. The Simply45® Pass Through RJ45 Crimp Tool S45-C100 provides more leverage than any other RJ45 crimp tool. The tool handles open up to 4.25″ (108mm). This leverage delivers more force with less hand effort during the crimping cycle. Other RJ45 crimp tools may work ok when you are crimping Cat5e, but when you start crimping Cat6 or Cat6a LAN cables, it usually takes both hands squeezing strongly to complete the crimp cycle. This is because most other RJ45 crimp tools use only ONE handle to generate the crimping force. The Simply45® RJ45 Crimp Tool design utilizes BOTH handles working in tandem to deliver the crimping force with much less effort. Crimping Cat6 cables with one hand is easy to do. This lowers the hand fatigue especially when you have many terminations to complete in a day.

Steel Reinforced for Greater Stability. We wrapped the Simply45® Pass Through RJ45 Crimp Tool S45-C100 with reinforced steel to ensure tool stability during the crimping cycle. When we analyzed other RJ45 crimp tools on the market we found that tools using various inserts introduced a lot of instability during the crimping cycle. Overtime this instability causes poorer wire trims and incomplete RJ45 pin setting onto the wire conductors. Crimp tool stability results in a smoother crimping cycle, better pin sets, more consistent wire trimming and greater durability over time. You can compare this to chefs in the kitchen. They can tell immediately if they have a good carving knife. They can truly feel the difference in the weight, the feel, the balance, the stability‚¬¦ compared to a cheaply made knife from China. That carving knife works smooth with less effort. In our industry the professional installer is the chef and RJ45 terminations are done in his kitchen. That is why professional installers should only use the best professional tools for the best professional results.

Improved Trimming Blade Design. We discussed above the importance ofTool Stability” in delivering the best RJ45 terminations. Learn more about the Importance of Tool Stability with Pass Through RJ45 Modular Plugs here.

The Simply45® engineers spent considerable time designing a pass through RJ45 crimp tool that would deliver consistent flush-to-the-plug wire trimming over time. The Simply45® Pass Through RJ45 Crimp Tool S45-C100 incorporate these engineering designs. These engineering features include: Even force delivered to the trimming blades by the synchronized crimp tool handles; a more stable crimping socket; a fixed blade position alignment requiring no adjustments; a more precise angle with no flexing on the trimming blade; and a diamond polished hardened steel trimming blade. The results are more flush and consistent wire trimming over many more termination cycles.

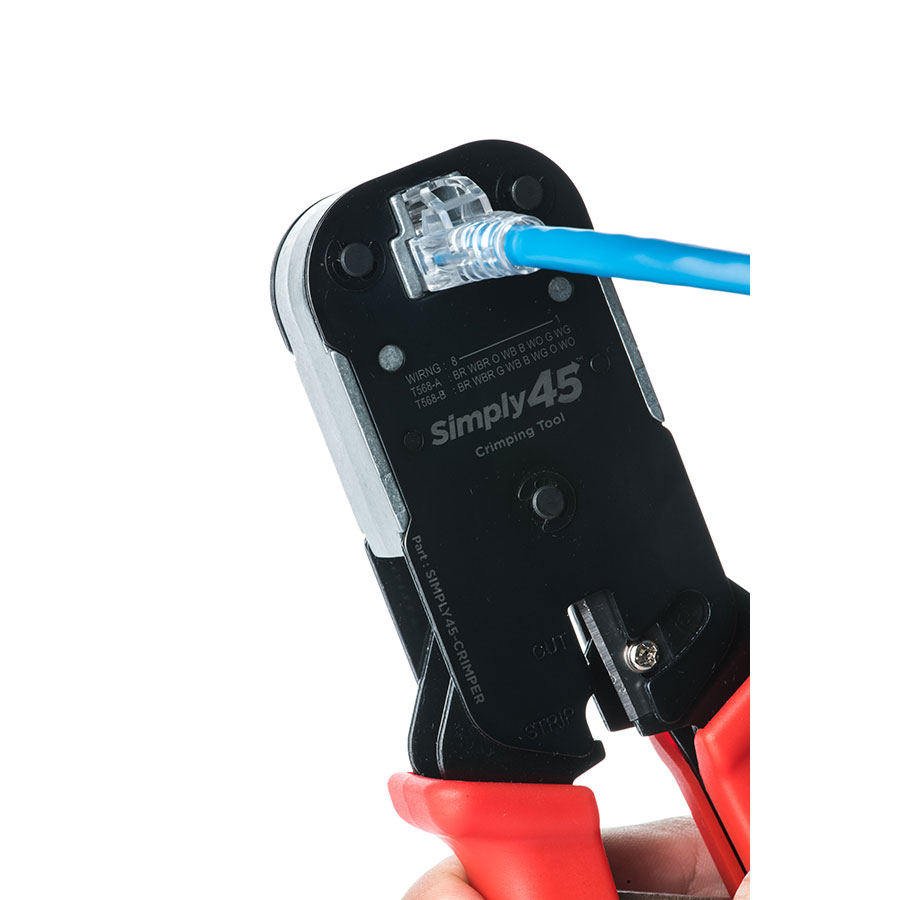

Wire Alignment Pattern Where You Need It. Simply45® laser engraves the wire alignment patterns Type A/B right under the crimping socket. We also list the pattern to match how the RJ45 modular plug is inserted into the tool. This makes it easy to provide one last check to be sure the wires are properly aligned inside the plug before crimping. This was a feature recommended by professional installers as a final check before crimping the RJ45 modular plug. Eliminates the error of putting the wire alignment upside down into the plug.

Easy Blade Changing. Dull and worn out blades is one of the primary causes for improper wire trimming on pass through RJ45 modular plugs. When we talked with professional installers one of their biggest complaints was the complexity and time-consuming process to change the trimming blades on some of these newer designed RJ45 pass through crimp tools on the market. Not with the Simply45® Pass Through RJ45 Crimp Tool S45-C100. We make blade changing quick and easy to do. 30 seconds is all you need to change the trimming blade. No adjustments needed. Just one screw and you changed the trimming blade. Simply45® believes that if you make changing the trimming blades very easy, installers will change the trimming blades more often.

Set Strain Reliefs / Boots During Crimping Cycle. Simply45® offers integrated strain reliefs / boots that are crimped to the RJ45 modular plug during the crimping cycle. The process is fast and secure. Using strain reliefs (boots) is very important to protect the RJ45 modular plug termination. The Simply45® integrated strain reliefs work much better than other strain reliefs. The Simply45® integrated strain reliefs are narrow (same width as the RJ45 modular plug). This is ideal for multi-port patch panels as you can easily insert and remove the plug from the jacks. Learn more about the Simply45® Strain Reliefs here.

Multi-Function. The Simply45® Pass Through RJ45 Crimp Tool S45-C100 also includes a built-in wire cutter and wire stripper. We also recommend our Adjustable LAN Cable Stripper (parts: S45-S01BL & S45-S01YL) that professionally strips ALL shielded and unshielded LAN cables from Cat7a to Cat5e.

Works with Platinum EZ-RJ45® Connectors. Simply45® makes it easy for you to quickly and simply switch over to the Simply45® Pass Through RJ45 product line. The Simply45® Pass Through RJ45 Crimp Tool S45-C100 also works with the Platinum Tools EZ-RJ45® Connectors. This allows installers to take advantage of the Simply45® RJ45 Crimp Tool right away and still use up your stock of EZ connectors. This way there is no waste on your previous RJ45 stock investments. EZ-RJ45® is a registered trademark of SullStar Technologies Inc.

Ergonomic Grip. Simply45® designed the S45-C100 with an ergonomic grip that reduces hand fatigue and slippage.

Lifetime Warranty. We are so certain that you will be pleased with the performance of our Simply45® Pass Through RJ45 Crimp Tool S45-C100 that we now offer a Lifetime Limited Warranty. For more details on our Lifetime Limited Warranty, please click here.


Highlights



Features



Multi-Functions



More


  • S45-C100 also works with other pass through RJ45 modular plugs such as Klein Tools, Ideal Industries and Platinum Tools.
  • S45-C100 is designed to work with our Simply45® RJ45 STP/UTP Pass Through and ProSeries plugs and boots.
  • S45-C100 can be used with standard modular plugs by quickly removing the S45-C190 blade.
  • S45-C100 is an affordable platform that supports multiple applications one tool does it all.
  • Limited Lifetime Warranty.
